Divesoft – DNA + O2 SENSOR
DiveSoft – DNA + O2 SENSOR

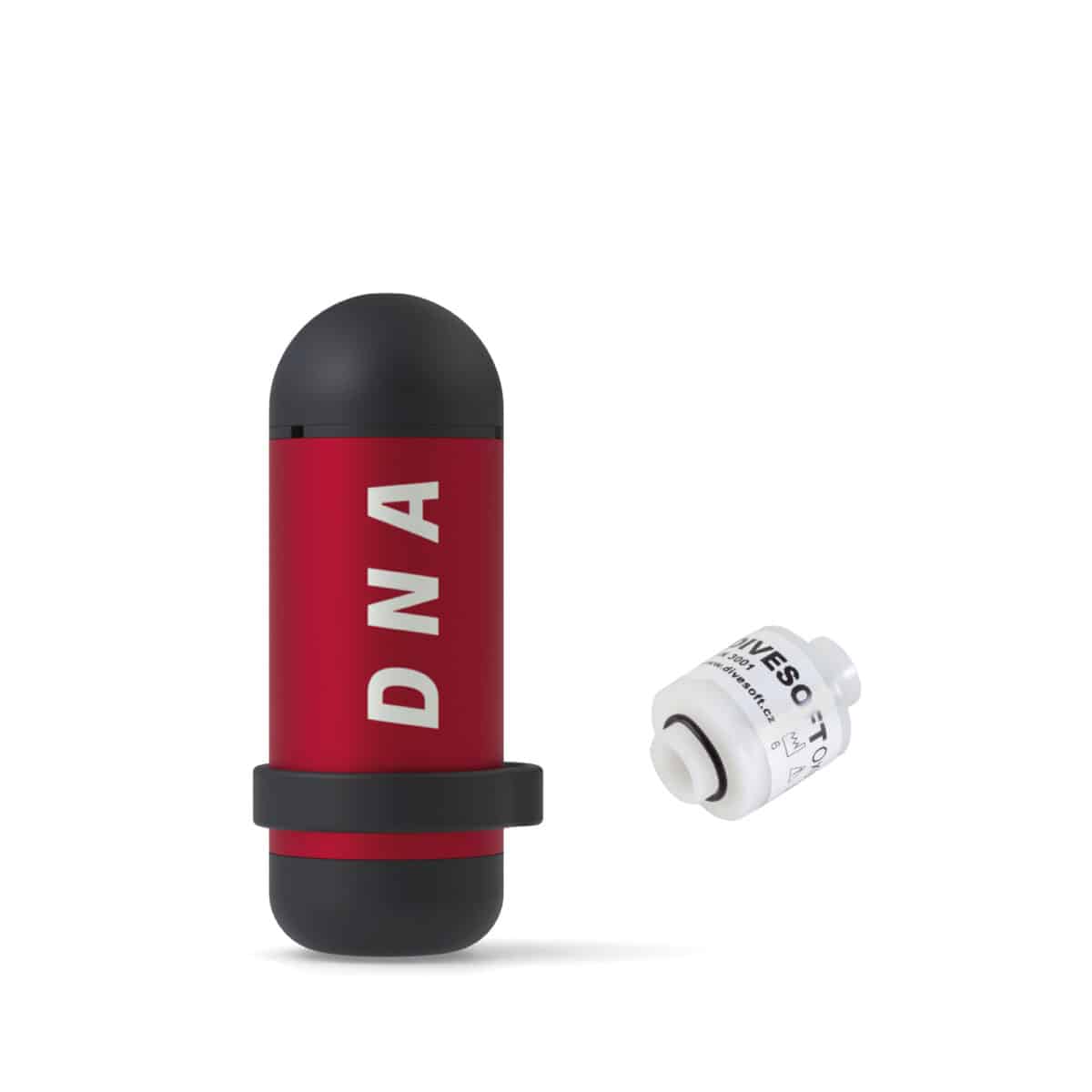

DNA (Divesoft Nitrox Analyzer) with the new R-22S Oxygen Sensor included..!

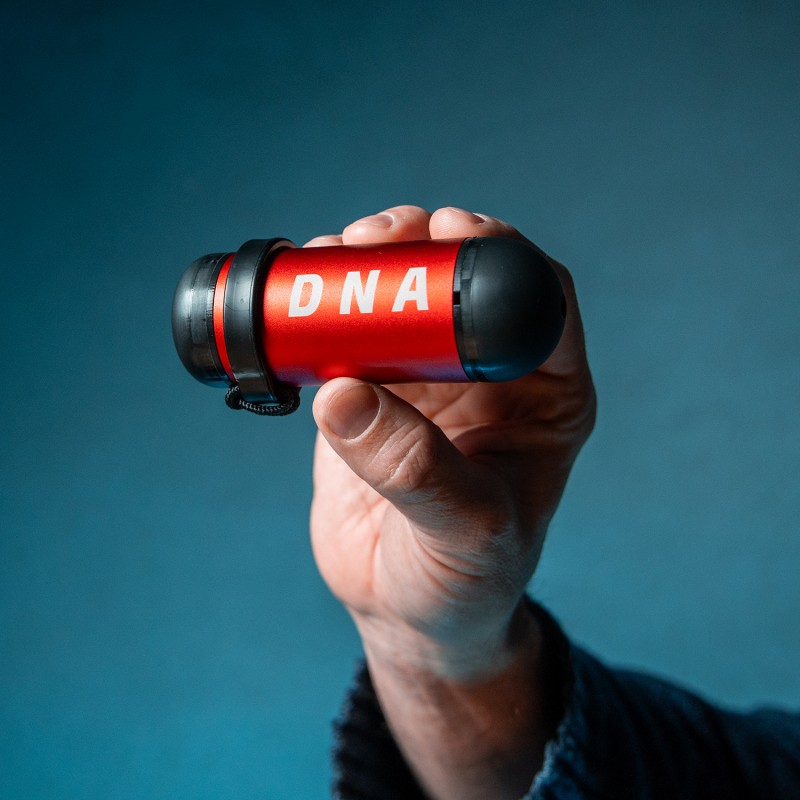

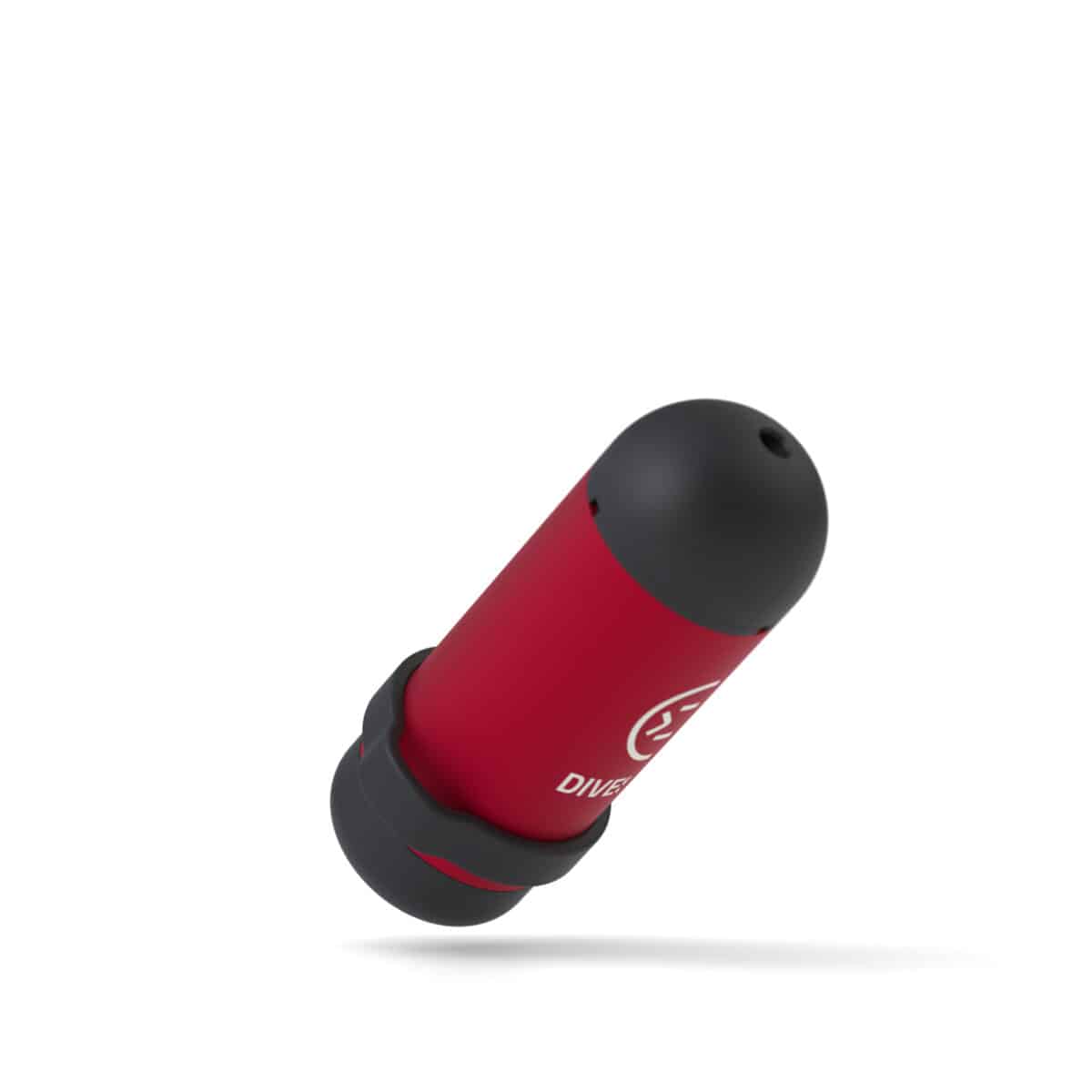

The DNA is a compact and smart pocket Nitrox analyzer designed for effortless oxygen measurement.

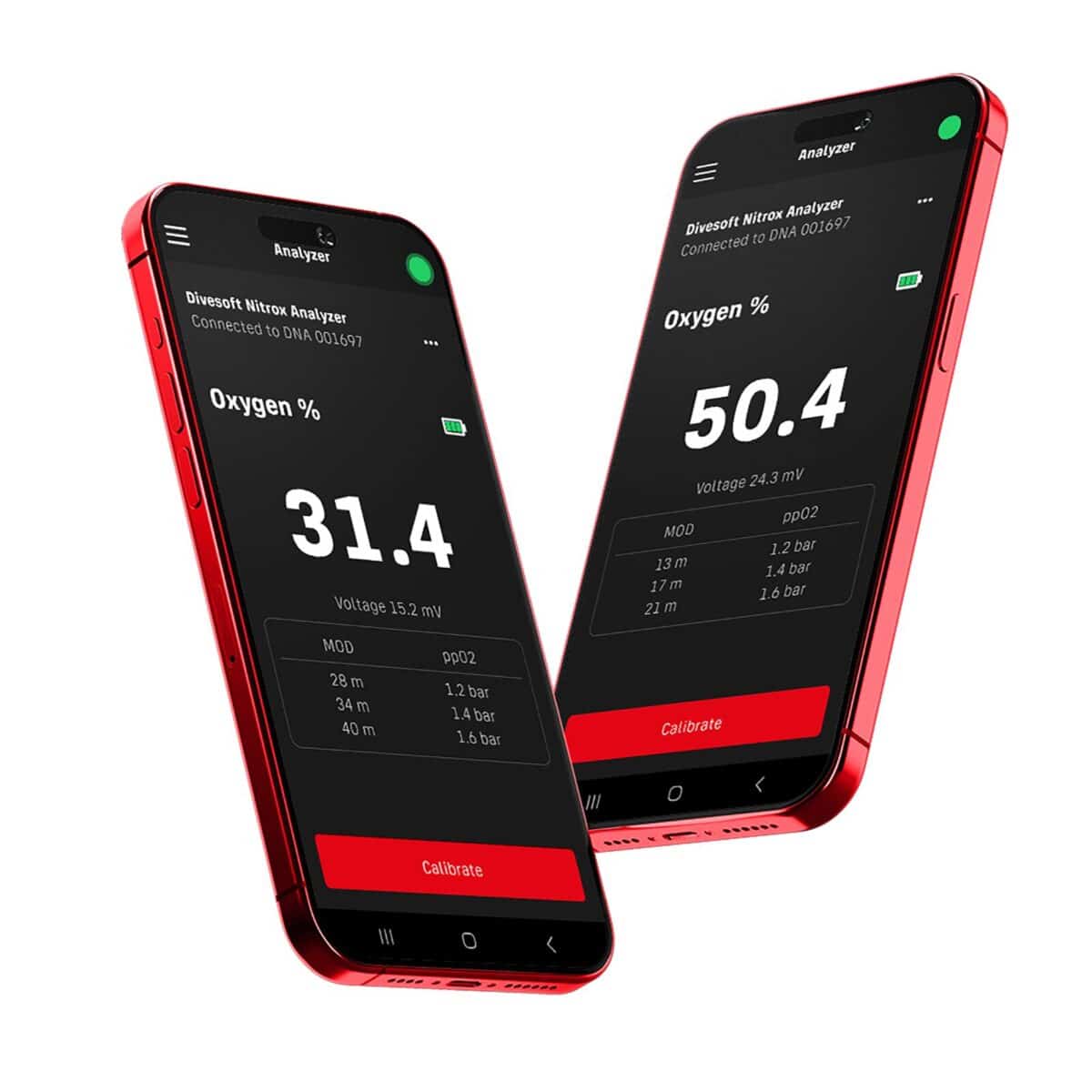

Perfect for recreational and beginner Nitrox divers, it ensures quick and reliable analysis. Paired with the Divesoft App, measuring is simple and convenient — and since the app works fully offline, no internet connection is required.
Divesoft.app
Get everything you need for your dive in one place.
The Divesoft App is designed as your central hub for dive preparation. Suitable for divers of all levels, it offers features that support you before, during, and after every dive.
https://www.divesoft.com/en/manuals/8460-dna-user-manual
TECHNICAL SPECIFICATION
DNA + O2 sensor
Dimensions of the analyzer: 45.6 × 111 × 40 mm (1.8 × 4.4 × 1.6 inches)
Weight: 100 g (3.5 oz)
Weight with sensor: 126 g (4.4 oz)
Range of measuring the concentration of oxygen: 0 to 100 %
Measuring temperature: 0 to +40° C (32 – 104° F)
Mixture pressure: consistent with ambient pressure, in the range of 700–1100 millibars (20–32 inches of Hg) which corresponds to the standard atmosphere at an elevation in the range of 0 to 3000 m (0–10000 feet) above sea level.
Rated gas throughput: 0.2 L/min
Oxygen sensor: Divesoft R-22S
Power source: CR 2450, user replaceable (the expected lifetime is 1-2 years)
The gas connection: direct contact connection to both “DIN” valve (EN 144-2) for 200/300 bars (G 5/8 thread) and M26x2 valves. Possible connection with the Divesoft professional flow limiter and connection hose.
Warranty: 24 months, 12 months on the oxygen sensor. The battery is not covered by the warranty.
Package includes:
#8460 DNA (without the Oxygen sensor)
#4156 Oxygen Sensor R-22S

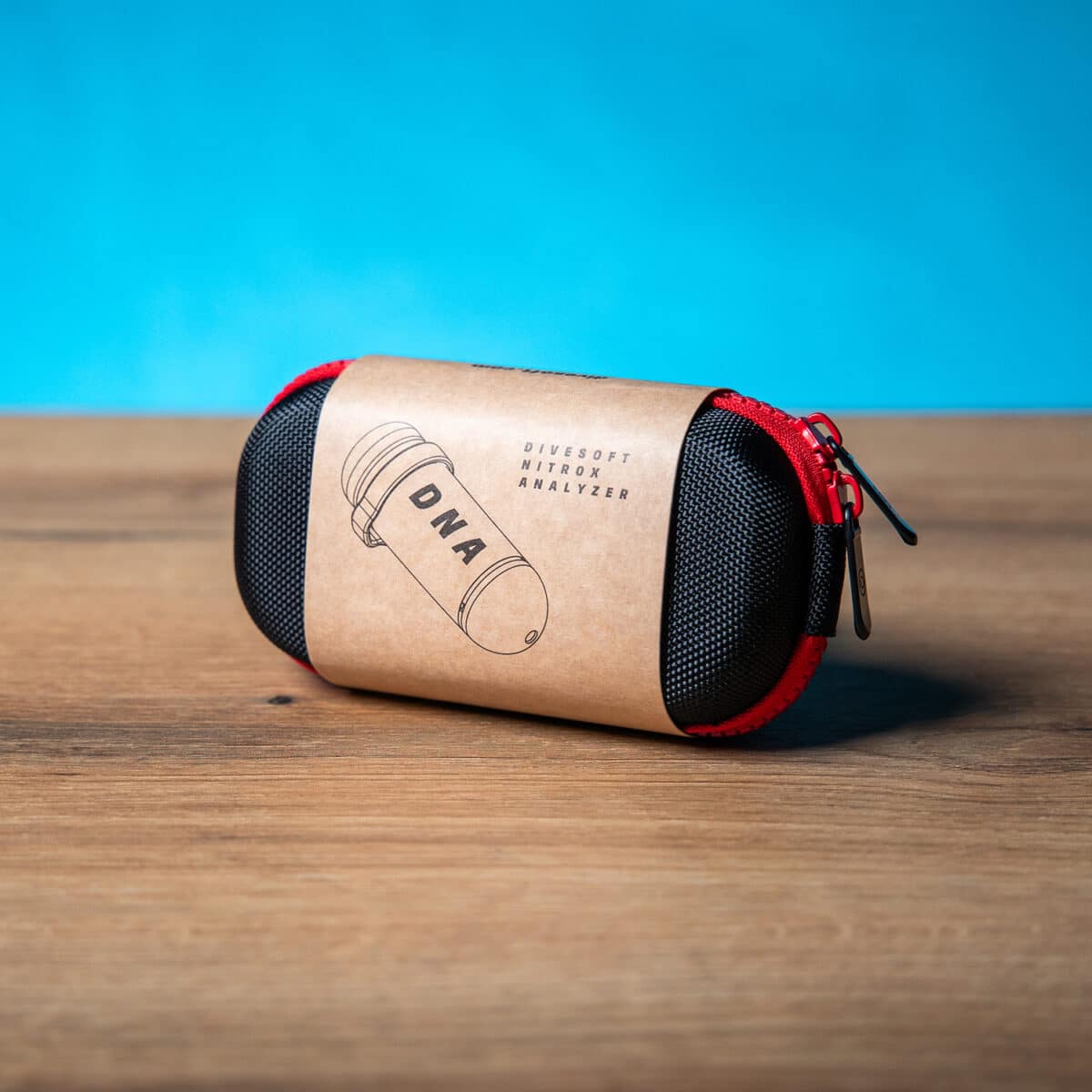

#3864 Semi-hard zipper case 75×150
Item number :#8504
Item weight :0.18 kg
